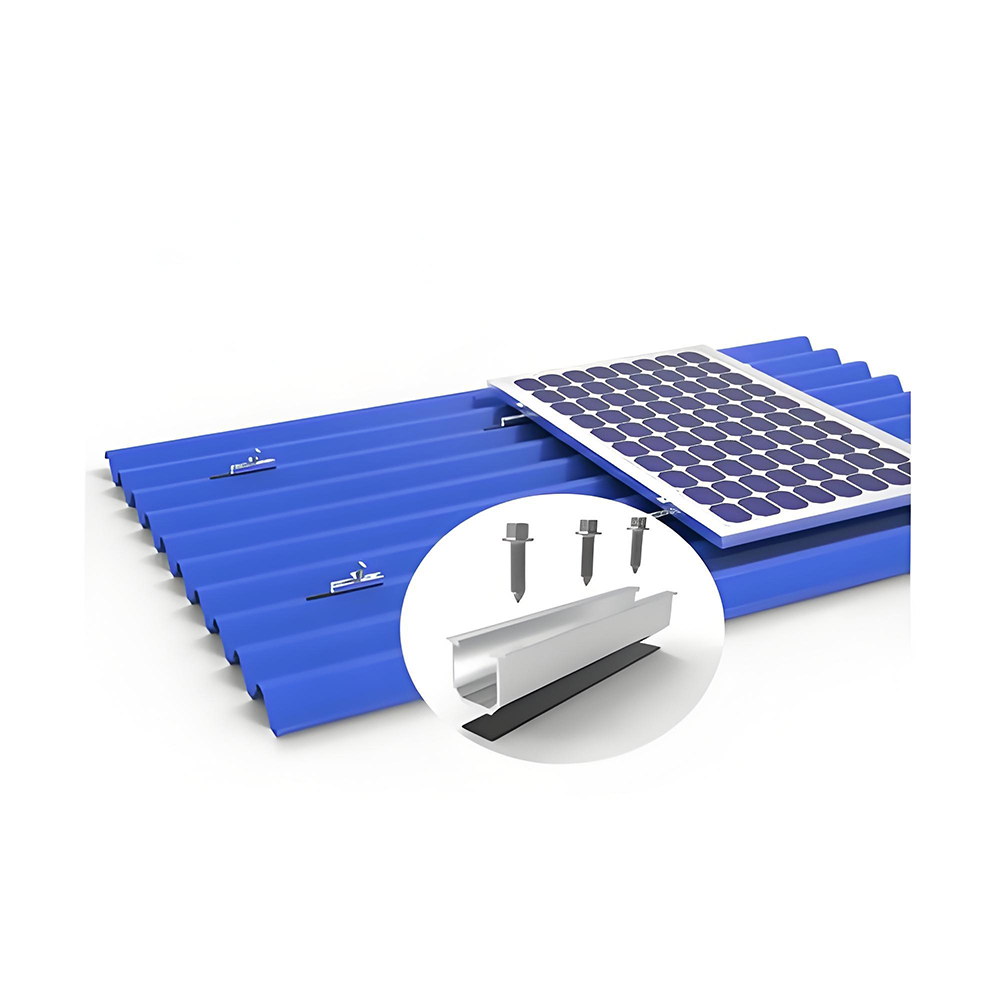

MINI-RAIL KIT TRAPEZOIDALMETAL ROOF SOLAR MOUNTING SYSTEM

Yooyi Energy Mini-rail Kit Trapezoidal Metal Roof Solar Mounting System is designed for solar installation on trapezoidal color steel metal roof. With mini-rail design, the system still delivers firm and stable fixation between metal roof and solar. As a cost-effective mounting solution, the mini-rail kit greatly reduces overall project cost.

Email: [email protected]

WhatsApp: 86-15259234267

Inquiry Now

Still deciding? Get samples first, Contact US !

Features
- Easy Installation,it reducing labor costs and project timelines
- Cost-Effective. Mini-rail systems typically require 30-50% less aluminum than conventional rail systems,
- Enhanced Weather Protection.Integrated sealing solutions prevent water penetration and provide superior protection against leaks.
- Superior Ventilation.The minimal height of mini-rail systems creates an optimal air gap between the panels and roof surface, promoting natural convection cooling that can improve panel efficiency by 2-3%.
- Durability and Longevity. The mini-rail systems offer exceptional corrosion resistance and a lifespan exceeding 25 years
Parameter table
Technical Parameter
Application: Metal Roof
Wind Load: ≤60m/s
Snow Load: ≤1.8 KN/m²
Model Orientation: Landscape/Portrait
Standards: AS/NZ 1702.2,DIN1055
Material: Al6005-T5 & SUS304
Warranty: 10 years
Guarantees & Service
All components are made of aluminum. The high corrosion resistance guarantees maximum service life and can be fully recycled. We give you 10 years warranty on our mounting systems.

Technical Parameter
Application:	Metal Roof
Wind Load:	≤60m/s
Snow Load:	≤1.8 KN/m²
Model Orientation:	Landscape/Portrait
Standards:	AS/NZ 1702.2,DIN1055
Material:	Al6005-T5 & SUS304
Warranty:	10 years

Compoments

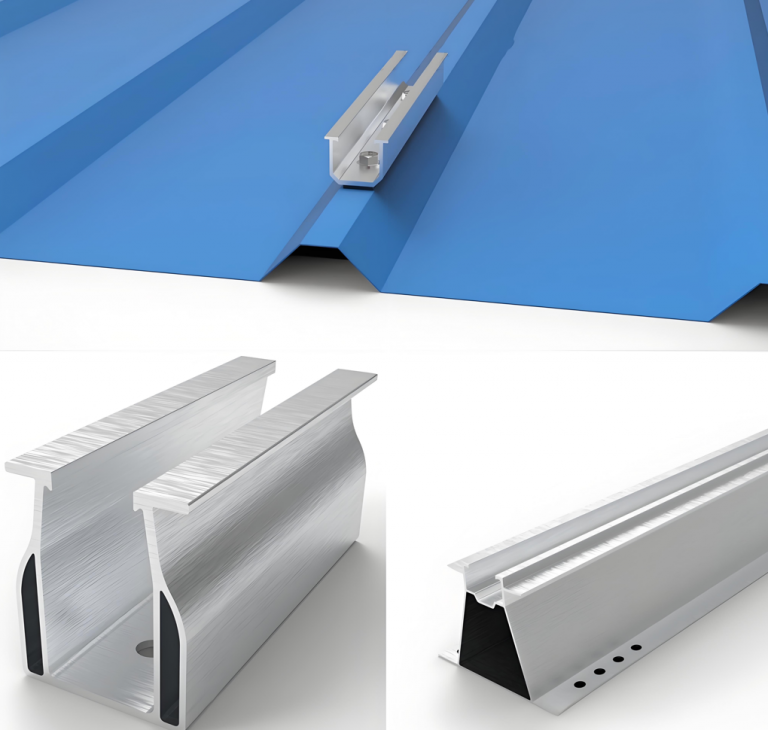

Mini Rail Kit

Material 6005-T5

Silver and Black optional

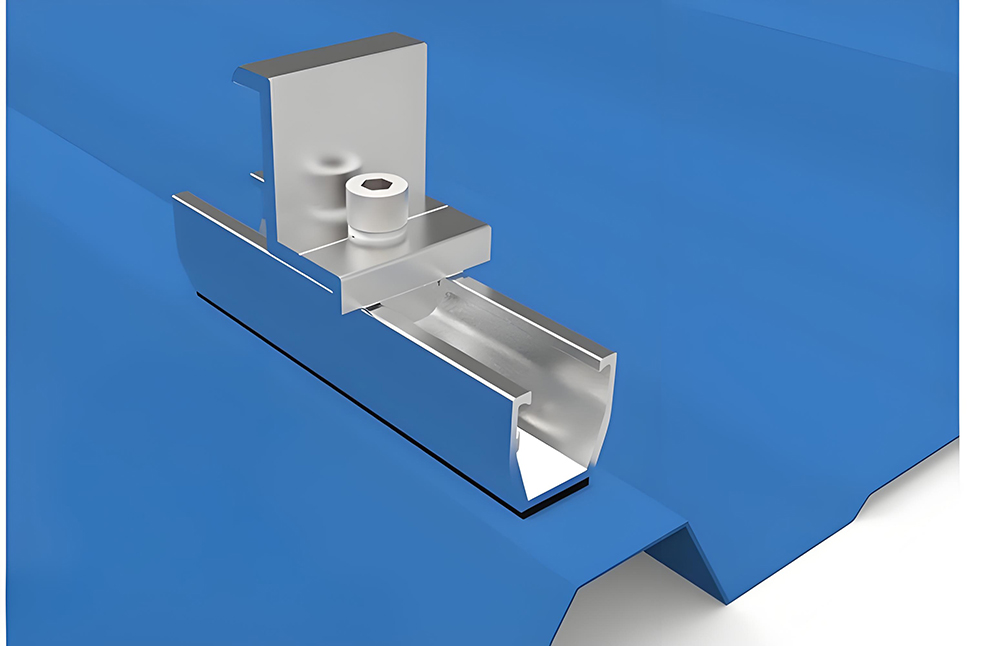

Middle Clamp Kit

30/35/40mm

Silver and Black optional

End Clamp Kit
30/35/40mm
Silver and Black optional

Built To Last

Constructed with high-grade aluminum alloy and stainless steel components, our mounting system is engineered to withstand harsh weather conditions and maintain structural integrity for over 25 years. Modular design with pre-assembled components reduces installation time by up to 40%. The system can be installed by a small team with basic tools, minimizing labor costs and project timeline.We stand behind our product with an industry-leading 10-year warranty covering all components, including brackets, rails, and hardware against manufacturing defects and material failures.

Cliplock Types

Customized Service
